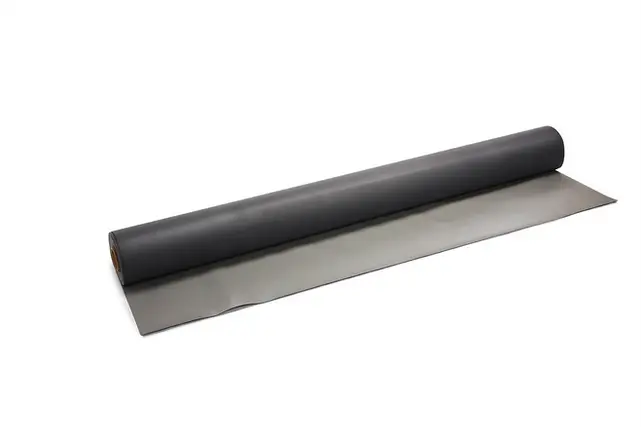

Rhenofol CG Membrane
Rhenofol CG is a glass reinforced roofing membrane. Rhenfol CG has successfully passed all FLL testing making it ideal for use underneath a green roof or a ballast roof.
QBM are UK suppliers for Rhenofol CG, a reinforced pvc roofing membrane especially designed for Green Roofs and Ballast Roofs.
Rhenofol is manufactured by FDT (FlachDach Technologie GmbH- ‘Flat Roof Technology’)
FDT is Europe’s leading single ply roofing membrane manufacturer with manufacturing plants in Mannheim and Hemsbach in Germany. FDT launched Europe’s first singly-ply roofing membrane 70 years ago.
Rhenofol CG is a glass reinforced roofing membrane. Rhenfol CG has successfully passed all FLL testing making it ideal for use underneath a green roof or a ballast roof.
Some of the advantages of Rhenofol CG include:
Particularly efficient and economic application for Green Roof
Glass fleece reinforcement for loose laid application under ballast
Proven long-term performance in UK.
Non-Shrinking, root resistant and resistant to perforation.
Ideal for new build green roof projects.
Single-ply with reliable sealing of seams
Applied without naked flame
Completely recyclable roofing product
BBA Approved
BBA Service Life Expectancy of 40 + years.
Frequently Asked Questions
Why does Rhenofol CG contain a glass-fleece inlay?
The internal glass fleece provides dimensional stability, making the membrane suitable for loose-laid applications beneath approved ballast, paving or green-roof layers. Protection layers are still required where specified.
Is Rhenofol CG resistant to root penetration?
FDT identifies Rhenofol CG as root and rhizome resistant for suitable green-roof systems and references FLL testing. The complete roof must also include protection, drainage, growing medium and inspection provisions.
Does it replace a separate root barrier?
Within an approved Rhenofol CG green-roof build-up, the waterproofing membrane can also provide the required root-resistance function. Compatibility with vegetation type, joints, penetrations and project warranty conditions must be confirmed.
How is the membrane installed?
Rhenofol CG is normally loose laid and secured by approved ballast or overburden. Adjacent sheets and details are still joined by hot-air welding or another FDT-approved method, and wind resistance must be demonstrated for the complete system.
Is Rhenofol CG compatible with bitumen?
Rhenofol CG is a plasticised PVC membrane and is not directly compatible with bitumen. A suitable separation layer or approved build-up is required where it is installed near bituminous materials.
