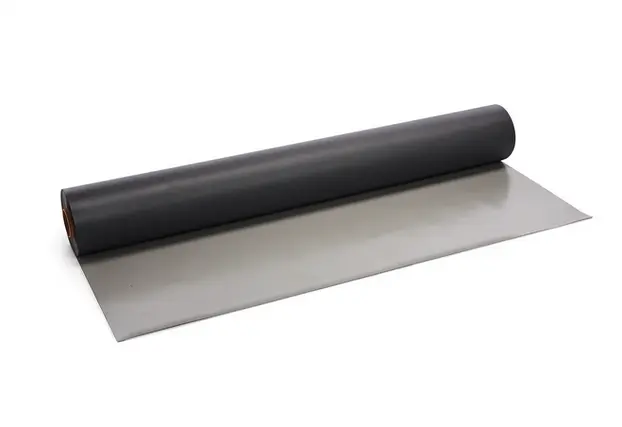

Rhenofol CV Membrane
Rhenofol CV is reinforced with polyester grid reinforcement, ensuring this membrane is extremely tear-resistant. Rhenofol Cv is Hail and UV-resistant.
QBM are UK suppliers for Rhenofol CV, a reinforced pvc roofing membrane.
Rhenofol is manufactured by FDT (FlachDach Technologie GmbH- ‘Flat Roof Technology’)
FDT is Europe’s leading single ply roofing membrane manufacturer with manufacturing plants in Mannheim and Hemsbach in Germany. FDT launched Europe’s first singly-ply roofing membrane 70 years ago.
Rhenofol CV is reinforced with polyester grid reinforcement, ensuring this membrane is extremely tear-resistant. Rhenofol Cv is Hail and UV-resistant.
Some of the advantages of Rhenofol Cv include:
Particularly efficient and economic application to any flat roof
Resistant to UV radiation and weathering
Proven long-term performance in UK.
Especially designed for the demands of new industrial buildings
Ideal for refurbishment projects.
Single-ply with reliable sealing of seams
Applied without naked flame
Completely recyclable roofing product
FM approved
BBA approved with a Service Life Expectancy of 40 + years.
Rhenofol Cv was recently and successfully used in IKEA Reading and IKEA Sheffield, both of these projects were over 30,000M² each.
Frequently Asked Questions
What does the polyester reinforcement do?
The polyester grid provides tensile and tear strength required for mechanically fastened exposed-roof applications. Fastener spacing and membrane width must be established by the wind-uplift design and FDT system guidance.
Is Rhenofol CV hail resistant?
FDT publishes hail-resistance performance for the membrane. Actual roof resistance also depends on membrane thickness, substrate, insulation, cover layers and the classified or tested assembly.
Why use a mechanically fastened PVC system?
Mechanical attachment can provide an efficient, lightweight solution where the structural deck offers suitable fastener pull-out resistance. The fixing pattern becomes denser at perimeters and corners and must be calculated for the building and exposure.
Is the installation flame free?
The membrane seams are formed using controlled hot-air welding rather than a roofing torch. This reduces open-flame risk, but electrical hot-air equipment, solvents where used and normal work-at-height controls still require safe procedures.
Can Rhenofol CV be installed over an existing roof?
It may form part of a refurbishment overlay after assessment of the deck, moisture, insulation, fire build-up, fastener resistance and compatibility. A separation or recovery layer may be required over existing materials.
